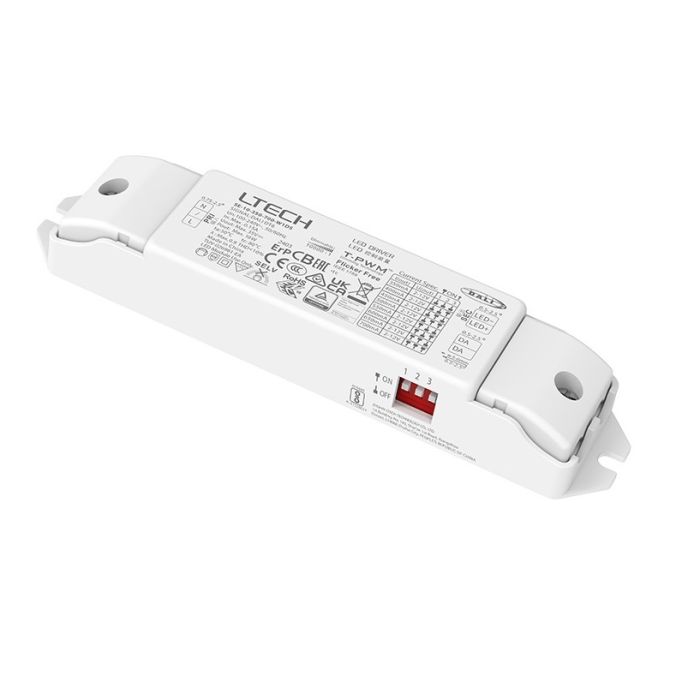

SE-10-350-700-W1DS SE-12-100-400-W1DS SE-12-350-700-W1DS Ltech 12W LED Intelligent Decoder Driver Dimmer Controller
Reliable Quality with 5 years warranty, Genuine Version, Not Copycat
Direct From Factory, Good Price
Dimming interface: DALI.
T-PWM digital dimming, present a perfect visual experience.
Dimming range: 0~100%, LED start at 0.01% possible.
DALI dimming curve: liner curve or logarithmic curve.
Flicker-free (IEEE 1789), achieve the level of exemption assessment.
Innovative thermal management technology, intelligent power life protection.
Over-heat / Over load / Short circuit protection.
Class 2 power supply. Full protective plastic housing.
DALI bus standard: IEC62386-101,102, 207.
Compliant with Safety Extra Low Voltage standard.
Suitable for internal lights application for I/II/III.
SE-10-350-700-W1DS
Rubycon capacitor
Dimming Interface: DALI DT6
DC Voltage Range: 120-300Vdc
AC Voltage Range: 100-240Vac
Input Voltage: 115Vac/230Vac
Power Factor: PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load),
Efficiency: 75%(at full load)
Fluctuation Level: No video flicker / High frequency exemption assessment level.
Output Voltage: 2-12Vdc
Output Current: 350-700mA
Output Power: 0.7W-8.4W
Dimming Range: 0~100%，down to 0.01%
Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,ERP,ROHS
Warranty: 5 years
SE-12-100-400-W1DS
Rubycon capacitor
Dimming Interface: DALI DT6
DC Voltage Range: 120-300Vdc
AC Voltage Range: 100-240Vac
Input Voltage: 115Vac/230Vac
Power Factor: PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load),
Efficiency: 82%(at full load)
Fluctuation Level: No video flicker / High frequency exemption assessment level.
Output Voltage: 9-42Vdc
Output Current: 100-400mA
Output Power: 0.9W-12W
Dimming Range: 0~100%，down to 0.01%
Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,ERP,ROHS
Warranty: 5 years
SE-12-350-700-W1DS
Rubycon capacitor
Dimming Interface: DALI DT6
DC Voltage Range: 120-300Vdc
AC Voltage Range: 100-240Vac
Input Voltage: 115Vac/230Vac
Power Factor: PF>0.95/115Vac (at full load), PF>0.9C/230Vac (at full load),
Efficiency: 82%(at full load)
Fluctuation Level: No video flicker / High frequency exemption assessment level.
Output Voltage: 9-24Vdc
Output Current: 350-700mA
Output Power: 3.15W-12W
Dimming Range: 0~100%，down to 0.01%
Certification: CCC,TUV,CB,CE,KC,EAC,RCM,ENEC,UKCA,BIS,ERP,ROHS
Warranty: 5 years
Package Included:
1 Piece of Ltech LED Intelligent Driver
Reliable Top Quality with 5 Years Warranty
CE and RoHS approved
