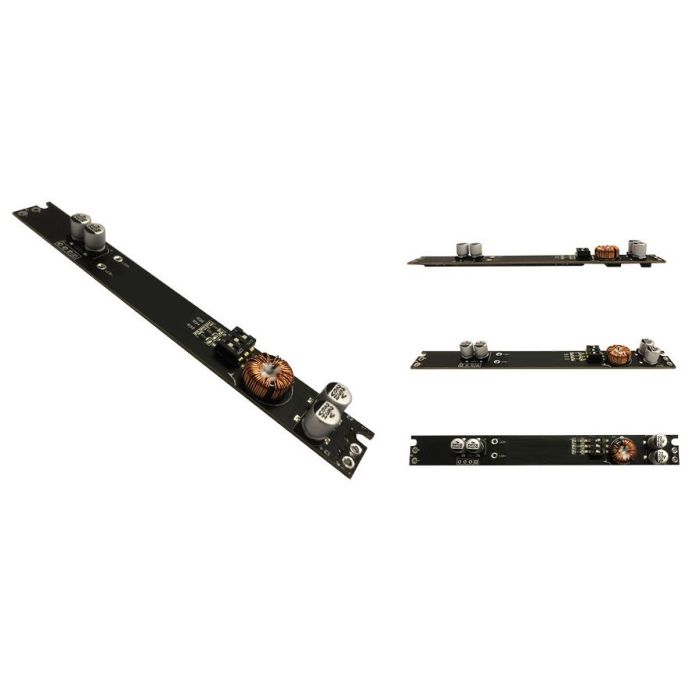

MT-100-400-D1A1 MT-350-700-D1A1 0-10V For Magnetic CC Ltech LED Driver Controller

A$19.58
In stock
SKU
MT-100-400-D1A1 MT-350-700-D1A1 0-10V For Magnetic CC Ltech
  • Buy 50 for A$18.21 each and save 7%

For more LTECH 0/1-10V, pls check here: https://www.vozopca.com/ltech-controller/letch-0-1-10v.html

If you need COB Led Strip, pls check here: https://www.vozopca.com/led-strip-lights/cob-led-strip.html

If you need Milight Products, pls check here: https://www.vozopca.com/milight-lights.html

If you need LETCH LED Controller, pls check here: https://www.vozopca.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.vozopca.com/mean-well-power-supply.html

If you need Power Supply, pls check here:https://www.vozopca.com/power-supply-power-adapter.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number,

easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website,

 enjoy more quality LED lighting products with the latest technology on Vozopca.com

MT-100-400-D1A1 MT-350-700-D1A1 0-10V For Magnetic CC Ltech LED Driver Controller

Reliable Quality with 5 years warranty, Genuine Version, Not Copycat

Direct From Factory, Good Price

No input polarity.

Multiple output current settings.

DC to DC constant current output.

Automatically identify 0-10V, 1-10V input.

Suitable for STUCCHI standard housings.

Magnetic installation is quiet without high-frequency sound.

Smooth dimming curves without flicker.

Short circuit, overload, no-load and anti-reverse protection.


MT-100-400-D1A1

Dimming Interface:    0-10V/1-10V

Input Voltage:    48Vdc±5% (No polarity)

Efficiency:    92%

Output Voltage:    10~42Vdc

Output Current:    100-400mA

Output Power:    1W-16.8W

Dimming Range:    0~100%,down to 1%

Certification:    CE,ROHS,FCC

Warranty:    5 years

Sec. output:

Pout(Max.)

Vout(DC)

Constant lout(DC)

1-4.2W

10-42V

100mA

1.5-6.3W

10-42V

150mA

2-8.4W

10-42V

200mA

2.5-10.5W

10-42V

250mA

3-12.6W

10-42V

300mA

3.5-14.7W

10-42V

350mA

4-16.8W

10-42V

400mA



MT-350-700-D1A1

Dimming Interface:    0-10V/1-10V

Input Voltage:    48Vdc±5% (No polarity)

Efficiency:    95%

Output Voltage:    10~42Vdc

Output Current:    350-700mA

Output Power:    3.5W-29.4W

Dimming Range:    0~100%,down to 1%

Certification:    CE,ROHS,FCC

Warranty:    5 years

Sec. output:

Pout(Max.)

Vout(DC)

Constant lout(DC)

3.5-14.7W

10-42V

350mA

4-16.8W

10-42V

400mA

4.5-18.9W

10-42V

450mA

5-21W

10-42V

500mA

5.5-23.1W

10-42V

550mA

6-25.2W

10-42V

600mA

6.5-27.3W

10-42V

650mA

7-29.4W

10-42V

700mA

Package Included:

1 Piece of 0-10V For Magnetic CC Ltech LED Driver Controller

Reliable Top Quality with 5 Years Warranty

CE and RoHS approved
