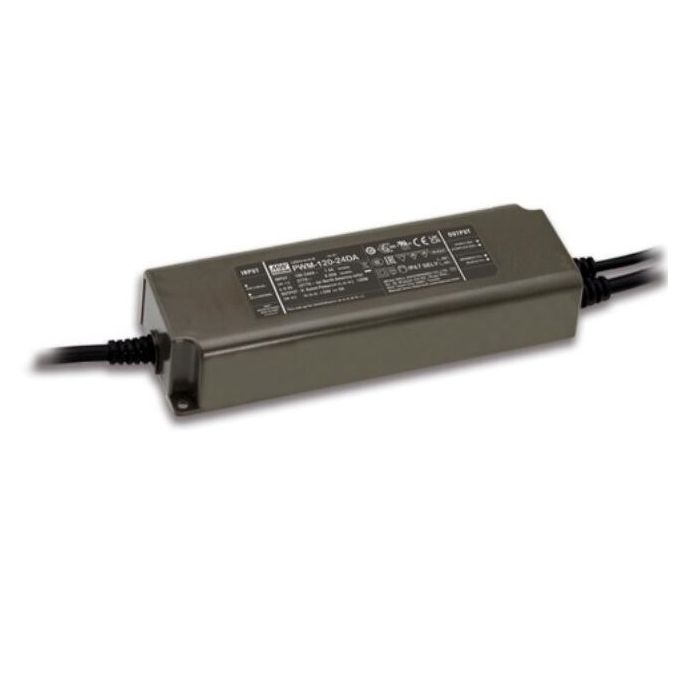

Mean Well PWM-120 120W Series Power Supply CV PWM Output Led Driver

A$74.93
In stock
SKU
Mean Well PWM-120 120W Series Power Supply Driver

For more MEAN WELL Power Supply, pls check here: https://www.vozopca.com/mean-well-power-supply.html

If you need COB Led Strip, pls check here: https://www.vozopca.com/led-strip-lights/cob-led-strip.html

If you need Milight Products, pls check here: https://www.vozopca.com/milight-lights.html

If you need LETCH LED Controller, pls check here: https://www.vozopca.com/ltech-controller.html

If you need MeanWell Power Supply, pls check here: https://www.vozopca.com/mean-well-power-supply.html

If you need Power Supply, pls check here:https://www.vozopca.com/power-supply-power-adapter.html

We supply high quality products to Australia and worldwide. Quick shipping with tracking number,

easy and safe ordering with PayPal and Credit Card.  We daily update new products onto our website,

 enjoy more quality LED lighting products with the latest technology on Vozopca.com

Mean Well PWM-120 120W Series Power Supply Driver CV PWM Output Led Driver

Features

Constant voltage PWM style output

 Emergengcy lighting application is available

 according to IEC61347-2-13

Built-in active PFC function and class II design

No load power consumption <0. 5W/ standby power

 consumption <0 5W(DA/DA2-type)

Fully encapsulated with IP67 level

Function options: 3 in 1 dimming (dim-to-off); DALI/DALI-2

Minimum dimming level 0.2% for DALI type

Typical lifetime>50000 hours and 5 years warranty

Description

PWM-120 series is a 120W AC/DC LED driver featuring the constant voltage mode with PWM style output,

which is able to maintain the color temperature and the brightness homogeneity when driving all kinds of

LED strips. PWM-1 20 operates from 90~ 305V AC and offers models with different rated voltage ranging

between 12V and 48V. Thanks to the high efficiency up to 90. 5%, with the fanless design, the entire series

is able to operate for -40°C ~ +90°C case temperature under free air convection. The entire series is rated

with IP67 ingress protection level and is suitable to work for dry, damp or wet locations. PWM-120 is equipped

with dimming function that varies the duty cycle of the output, providing great flexibility for LED strips

applications.

Package Included:

1 Piece of Mean Well PWM-120 120W Series Power Supply Driver CV PWM Output Led Driver



CE and RoHS approved
