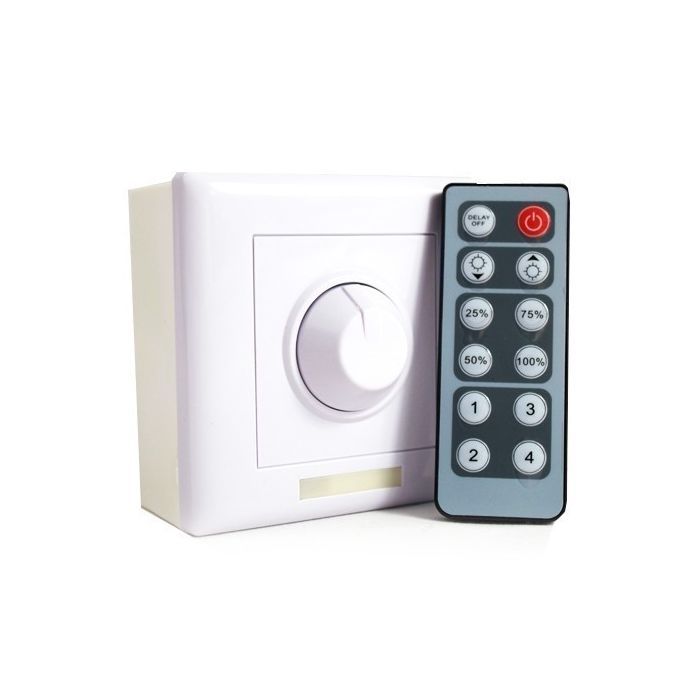

IR Infrared Remote DMX Dimmer PWM LED Dimmer Switch is a constant current intelligent LED lighting dimmer controls,
adopt the most advanced PWM (Pulse Width Modulation) digital dimming technology, you can manually adjust the brightness stepless.
IR wireless remote control can also be used to remote dimming; Standards for commercial or home a low 86-type switch socket box installation,
LED dimmer switches can be installed to meet the light needs of commercial or home lighting in the different time and different environments,
to extend the LED life span, energy saving; power and low-power LED lighting can be dimmin. Is used to control a variety of led lamps as the light source,
for instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; With competitive price, easy wiring, simple to use etc.;
Through the infrared remote control and dimmers on the knob to adjust brightness; Gray level 255, with custom features, delay shutdown function and a fixed grayscale output.
1.Working temperature: -20~60 celsius
2.Supply voltage: DC 12V~24V
3.Output: DMX signal
4.Controller dimension: L87*W87*H42mm
5.Remote dimension: L86*W33*H7mm
6.Packing size: L160*W95*H51mm
7.Carton size: L496*W272*H308mm, 54pcs/ctn
8 Net weight: 145g
9.Gross weight: 180g
10.Input: DMX signal
11.Static power consumption:<1W
12.Function: Dimmer level 0-255 .
Package Included:
1 Piece of LED Dimmer
1 Piece of IR Remote control
1 Piece of User Manual
Interface Specifications:
Direction for use:
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between
connecting wire before you turn on the power;
2. When operation, the remote control facing the infrared receiver, ensure that there are no obstructions between
remote controller and receiver; When dimmer receives an effective signal from the infrared remote control,
the red light on the upside flickers; There are two methods in Dimming: . Infrared remote control adjustment mode;
the key features as follow(range as the keys of remote controller)
A. Infrared remote control adjustment mode; the key features as follow(range as the keys of remote controller).
B. Regulation resistance adjusts modes:
Rotary knob clockwise to increase brightness; knob counterclockwise rotation will decrease the brightness.
Typical Applications:
CE and RoHS approved
