EUP40A-1HMC-1 Euchips 40W 850-1200mA 1ch 0/1-10V CC Led Driver

Short Description:

Item No.:EUP40A-1HMC-1

Input Voltage:220-240VAC

Output Current:850/900/950/1000/1050/1100/1150/1200mA*1CH

Output Voltage:9-45VDC

Output Power:40W

Dim Mode:1-10V/PWM

G.W.:225g

Size:137*82*31mm

40W 850/900/950/1000/1050/1100/1150/1200mA Constant Current 1-10V Driver EUP40A-1HMC-1

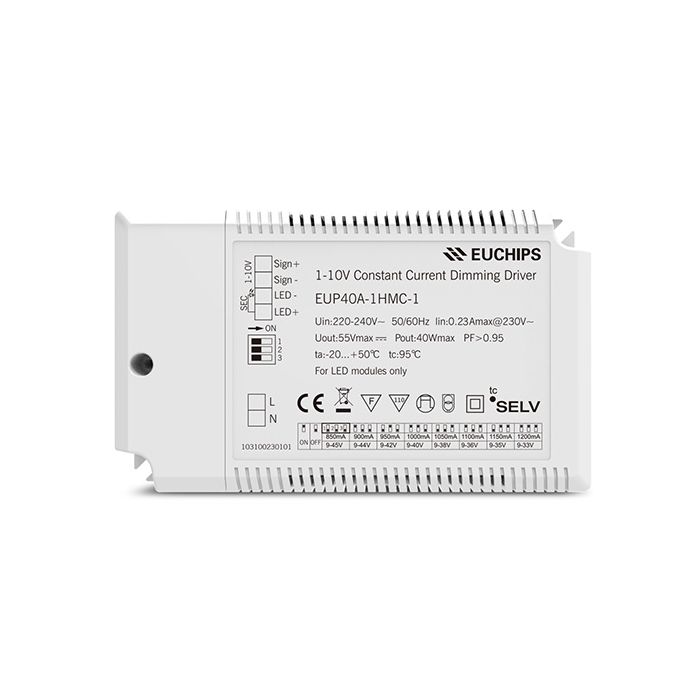

EUP40A-1HMC-1 is a constant output mode LED driver. The output current can be easily set via DIP switch,

and the driver can be adjusted by the external 1-10VDC active signal, PWM signal , or adjustable resistance

to achieve the smooth dimming effect.

Features

1. Single channel output, output current level selectable by DIP S.W.

2. Support 3-in-1 dimming mode(1-10V active signal, adjustable resistance, PWM)

3. High input voltage of 220VAC ~ 240VAC

4. High efficiency up to 88%

5. Built-in active PFC function

6. 100% output when no dimming signal input, can be used as normal power supply

7. Dimming effect smooth, no flicker

8. Protections: Short circuit, over load, over temperature

9. Suitable for indoor LED lighting application, such as down light, panel light, and so on

Package Included:

1 Piece of EUP40A-1HMC-1 Euchips 40W 850-1200mA 1ch 0/1-10V CC Led Driver

CE and RoHS approved
