This R102 mini dimmer is a very cool product, it would work as Mini Size Dimmer and a Special Effects Controller for
single color led strips (3528, 5050, 5630, Etc..). ALL in ONE! Adjust Brightness AND Control Flashing, Blinking, Fading, etc...
This R102 mini dimmer presents multiple special dynamic modes, brings a new application of single color LED decoration.
Besides, it can be used as a LED dimmer. You can easily change dynamic mode, speed and brightness by pressing 3 keys on
it`s ultra slim body. R102 also has auto memorize function and can output up to 144 watts power (144W for DC 12V; 288W for DC 24V).
Ideas:
- Make your own motorcycle taillight strobes to draw more attention. Just set it on one of the super fast flashing modes.
- Heartbeat fade in / fade out mode for event decoration, costumes with LEDs, etc.
- Strobe modes for headlight flashers.
- And of course it can be used for many more cool projects. Use your imagination!
Functions (for single color led strips);
--Press "MODE" to cycle through 5 modes
--Press "SPEED/BRIGHTNESS" to cycle through 5 speeds(for the mode)
--Press "SPEED/BRIGHTNESS" to cycle through 8 brightness levels while in a solid light mode
--Press "SPEED/BRIGHTNESS" while in solid light mode, hold down to switch ON/OFF
--Press"LIGHT" to get a solid glow
Dynamic modes on single color LED strips
5 dynamic modes
256-level PWM control mode
6-level speed adjustable
8-level brightness adjustable
Auto memorize function
Easy operate keys
Ultra slim design
Working voltage DC 12V~24V
Max output current 12A
Max output power 144W for DC 12V; 288W for DC 24V
Working temperature -30℃~+75℃

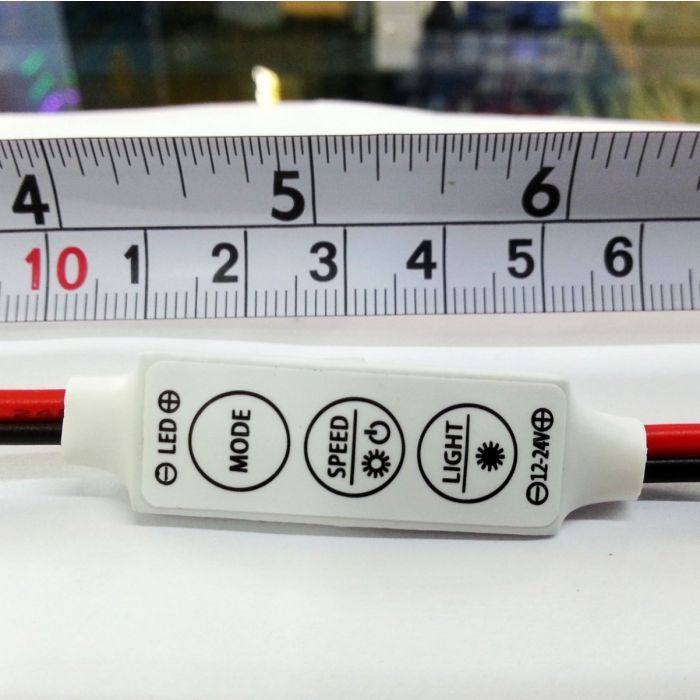

Length: approx. L26mm
MODE Button:
1. This is the Special "Effects" Button (flashing, blinking, strobe, pulse, fade etc).
2. Press to start Special "Effects" Mode.
3. Continue to click to switch between the Special Effects.
4. The SPEED of the Special “Effects” can be adjusted by using the SPEED/BRIGHT BUTTON.
5. To leave the "Effects" Mode, click the LIGHT BUTTON.
SPEED / BRIGHT Button:
1. Press and HOLD to turn your Lighting On or Off
2. Click to Dim / Adjust Brightness. This can ONLY be done when it is NOT in the "Effects" Mode.
3. Click to change Speed (ONLY when in the “Effects” Mode)
Package Included:
10 Pieces of Mini LED Dimmer (R102) Controller
CE and RoHS approved
