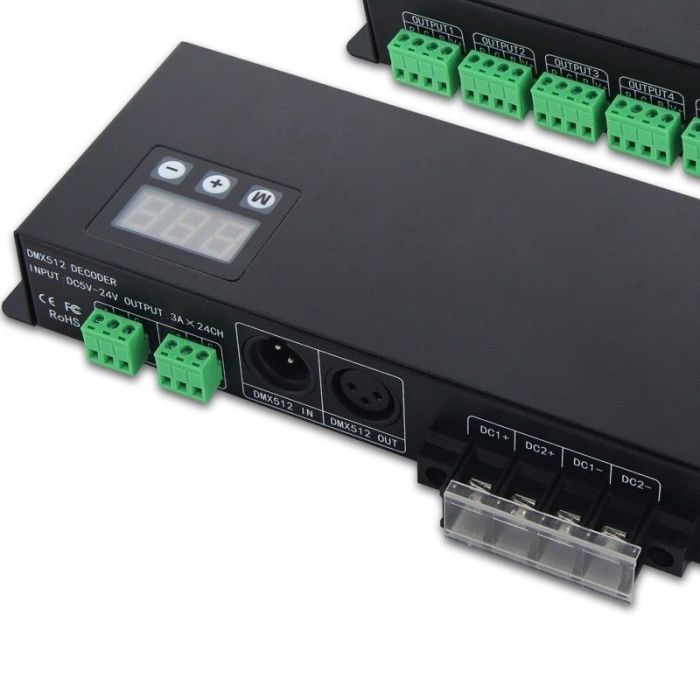

BC-824
Feature function:
Universal standard DMX512 input protocol; 3-digital-display shows DMX address code.
Working voltage from DC5V-DC24V.
24 output channels,4096 grey steps per channel.
Multiple self-change modes, 10 speed levels .
Product parameter:
Input voltage: DC5V-24V
Max load current: 3A/CH×24
Max output power: 360W/860W/1720W(5V/12V/24V )
Output Scale level: 4096 levels
Input signal: DMX512/1990
Output DMX Channel: 24Ch CV PWM
working temperature: -30℃-65℃
Dimension: L260×W110×H40(mm)
Package Size: L270×W130×H45(mm)
Weight (G.W): 920g
Notice1)2)3):
The Decoder should connect with two power supplies,
The 1 st power supply support Output 5-8,the 2nd power supply support 1-4;
The two power input can share the same umit power supply when the power is sufficient.
Package Content:
1 Piece of BC-824 Bincolor Led Controller 24 Channel DMX512/1990 Signal Decoder Driver 5V-24V
1 Piece of User's manual
CE and RoHS approved
