Feature function:
Automatically adapts input voltage DC12V-24V.
1 output channel, Max output 18A.
PUSH DIM input voltage AC/DC12V-230V.
0/1-10V to PWM dimming signal conversion, linear or log.
Support linear dimming or logarithmic dimming.
Support optional output frequency 0.5K,1K,2K,4KHz.
Compatible with many brand dimming systems.
Multi units can be worked together or use our power repeaters to control more lamps.
Power loss memory function. Over current protection, short circuit protection.
The DIN rail style facilitates the installation of large-scale projects.
Product parameter:

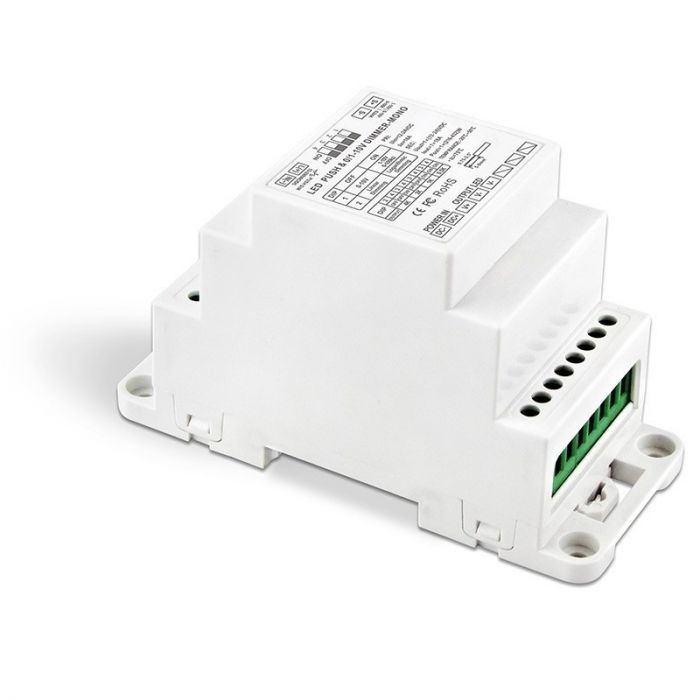

Model: 0/1-10V Dimming Driver
Input Voltage: DC12V-24V
Max Current: 18A×1CH
Input Signal: 0/1-10V or PUSH DIM
Output Signal: Constant Voltage PWM
Max Output Power: 216W(12V)/432W(24V)
Output Frequency: 0.5K、1K、2K、4KHz selectable
Dimension: L111×W46×H66(mm)
Weight(G.W) :106g
Package Content:
1 Piece of BC-331-DIN Bincolor Led Controller PWM Dimming Driver DC12-24V
1 Piece of User's manual
CE and RoHS approved
