Input/Output Voltage: DC12V-24V
Total Output of current: 27A
Output: 1A each channel max 3A
Channel: 27channel 9 group
Controller: DMX512 XRL 3P RJ45Product description
Size:27 Channel
Specifications:
1.Input/Output Voltage: DC12V-24V
2.Total Output of current: 27A
3.Output: 1A each channel max 3A
4.Channel: 27channel 9 group
5.Controller: DMX512 XRL 3P RJ45
6.Working temperature: -20~60 celsius
7.Dimension:200x85x25mm
8.Weight:0.23Kg
Function:
1.Each DMX common controller occupied 3 DMX addresses,adopt coding switch set address.It is a Binary numerical
code switch is setting DMX original address code from 1 to 9. 1 is the lowest,and 9 is the highest.511 address codes
could be setted in wall.DMX original address code equal aggregate value from 1 to 0. Dial the coding swich upwards
(ON is setted 1),the value of bit can be gotted.On the contrary,the value of bit is 0. For example:if you want to set 37
as the address code,you can only dial down the first,the third and the sixth code switch value from 1 to 9 is 32+4+1,
that is,the original address code of DMX512 is 37.
2.DMX signal can be received when coding switch FUN(10)=OFF.
Safety information:
1.The input voltage of this controller should be follow. The specifications,other high voltage would most probably destroy it.
2.Never connect two wires directly in case of short circuit.
3.Lead wire should be connected correctly according to colors that connecting diagram.
4.Warranty of this product is one year,in this period charge,but exclude the artificial situation of damaged.
Package included:

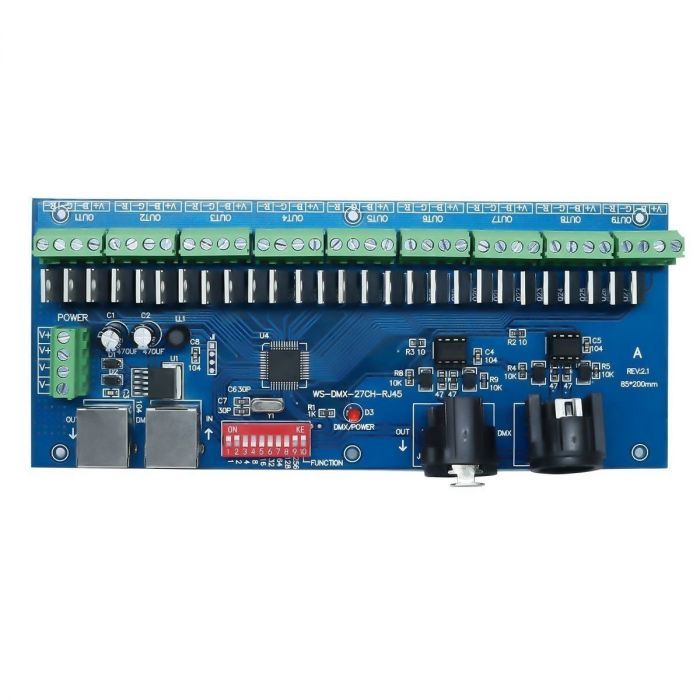

1x WS-DMX-27CH-RJ45 DMX512 Decoder
Product Model:
Package Included:
1 Piece of 27CH Easy DMX512 Decoder 27 Channel DMX Controller WS-DMX-27CH-RJ45-LED
CE and RoHS approved
